RZ-8W型微機全自動熱值測試儀

RZ- 8W full-automatic microcomputer calorimeter

全自動微機熱值儀是熱值測量儀表，主要用于固體燃料和液體燃料，如建材、石油、食品、木材、爆炸物等發熱。該儀器具有精度高、操作方便、運行可靠的新型能量分析儀。能夠?qū)崿F(xiàn)自動控制，連接自動測量電路判斷點火、自動點火。

RZ-8W full-automatic microcomputer calorimeter is calorific value of measurement instruments,combustible mainly used for solid and liquid fuel,such as coal,oil,food,lumber,explosive substances such as heat. The instrument has high accuracy,easy to operate,reliable operation of the new energy analysis instrument. To achieve automatic control,automatic measurement circuit are connected to judge the ignition,automatic

1.功能特點

1、外型美觀大方，選材考究，制作精良，結構合理，故障率低

1. Features

1 It is beautiful and elegant, well-made and well-structured with special material and low failure rate.

2、整個過程操作簡單，只需將裝有試樣的氧彈充氧后放入量熱儀內，試驗自動完成。

2 It is quite easy in operation in the whole process and just by adding the oxygen bomb filled with oxygen and samples into the calorimeter, then the experiment can be automatically completed.

3、采用雙筒結構往內桶中注水，有效的避免了注水后因水位過高溢出的現象。

3 Injecting water into the inner barrels by means of binoculars effectively avoids the overflow phenomenon due to high water level.

4、采用水位平衡盒平衡水位，重復誤差＜0.5g，水量準確，實驗時間短。

4 The water level balance box is used for water level equilibrium so that the repeated error can be smaller than 0.5g, the water volume is accurate and experimental time lasts shorter.

5、采用進口攪拌電機，使內桶水快速對流，攪拌充分。

5 Imported mixing motor is used so as to make sure of fast water convection of inner barrels and can meet a full mixing.

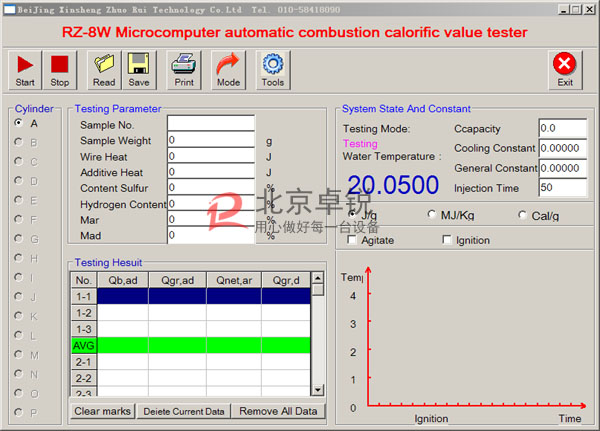

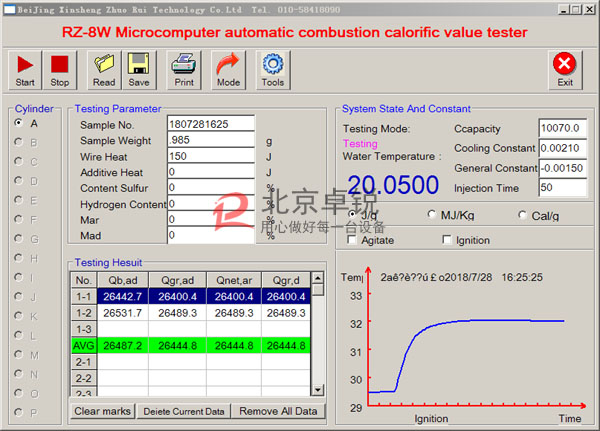

6、測試軟件全面支持windows平臺，穩定性好，操作方便易學易懂。

6 The test software extends great support for windows platform which is good at stability and easy operation and simple understanding.

2 .技術參數

測溫范圍：0~40℃（每次測定室溫變化應≤1℃）相對濕度≤85%

溫度分辨率：0.0001℃

測試時間：點火初期6分鐘平衡水溫。點火后12分鐘測試主期溫度，全程實驗時間18---20分鐘（試樣熱量低實驗時間相對延長）。

2. Technical parameters

Temperature range: 0 ~ 40 ℃ (every temperature change should be≤1 ℃)

Relative humidity ≤85%

Temperature resolution: 0.0001 ℃

Test time: it takes 6 minutes for temperature balance in early ignition. The main temperature will be measured after 12 minutes of ignition and the entire experiment lasts from 18 to 20 minutes (sample heat is low and the test time can be relatively extended).

功    率：<500W   電源：220V±10V

外觀尺寸：400mm×575mm×456mm

測量精度：符合國標GB/T14402

外桶容量：35L    內桶容量：2.3L    點火電壓：24V

Power: <500W power      supply: 220V ± 10V

Dimensions: 400mm × 575mm × 456mm

Accuracy: meeting the national standard GB / T14402

Outer barrel capacity: 35L     inner barrel capacity: 2.3L    Ignition Voltage: 24V

摘自：北京鑫生卓銳科技有限公司技術服務部。
